SeceuroGuard 1000 for Small Windows
Security Grilles - Retractable
Up to 1500mm x 1600mm high
Material: Steel
Enquiry Form
Call Us
Email Us
Web Price: £277.00
(Excluding VAT and £332.40 Inc. VAT)
1
Ordering
Web Price:
£277.00
(Excluding VAT and
£332.40
Inc. VAT)
NEED HELP? Call us on 01933 448 850
or click here to connect via our Live Chat
- Description
- Application
- Specification
- Installation
- Warranty
Description
The SeceuroGuard 1000 Small Window Security Grille is a high quality collapsible steel security grille specifically configured for small window openings in both domestic and commercial properties. Purpose-built for internal installation between window apertures, this version of the

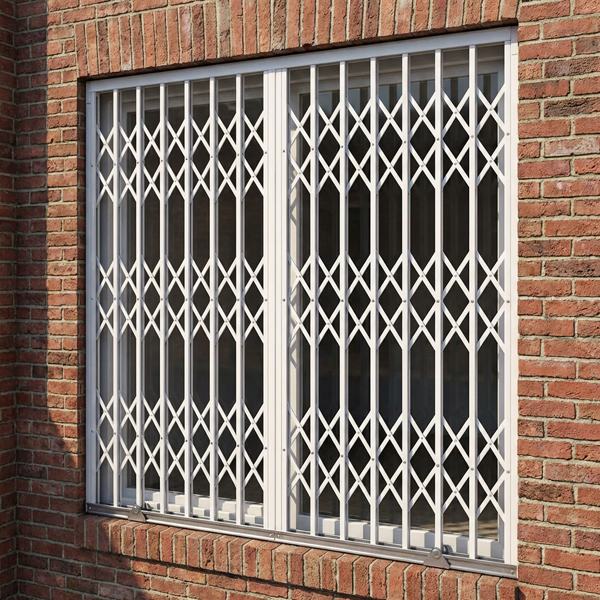

SeceuroGuard 1000 provides effective security for windows up to 1500mm wide and 1600mm high whilst maintaining all the quality and functionality of the full SeceuroGuard range.
Perfect for bathroom windows, utility room windows, side windows, and any smaller vulnerable openings that require discreet yet robust security protection.

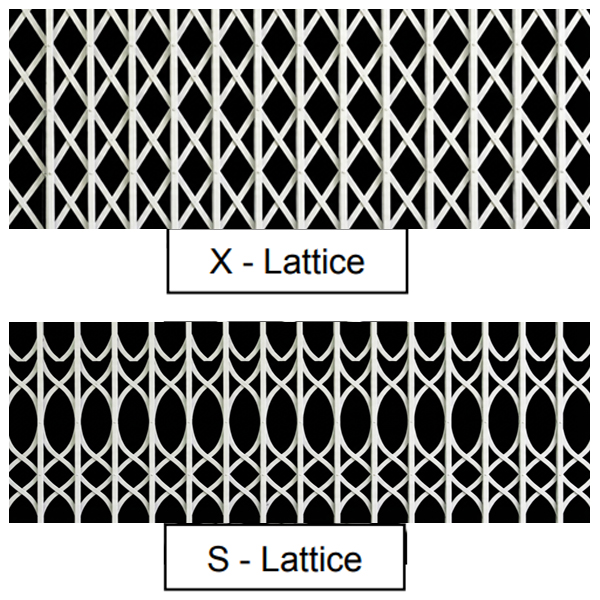

The gate lattice is available in either the traditional 'X' lattice design or the softer 'S' lattice design at the same price.
This configuration is specifically designed for between-aperture fitting, making it ideal for window recesses where a neat, unobtrusive finish is essential.
The Seceuroguard grille is available in 27 standard colours to co-ordinate with almost any colour scheme. Special colours can be ordered on application. To view the RAL Colour Chart, please click here PDF www.samsondoors.co.uk/downloads/sws_colour_chart_samson_22586.pdf>
Essentially maintenance free with a wide range of colour options and a choice of lattice styles, classic appearance and convenience combine with high levels of protection for small window applications.
Key Features:
-
Strong security barrier and deterrent for small windows
- Galvanised for corrosion resistance and powder coated
- Fully retractable system for easy access and cleaning
- Excellent through-vision and ventilation when locked
- Multi-point locking from a single key
- Smooth running carrier system ensures quick and easy operation
- Configured for small window openings up to 1500mm x 1600mm
- Between-aperture installation for neat, recessed fitting
- All the quality of SeceuroGuard 1000 in a small window solution
Exceptionally strong, yet unobtrusive and stylish, the SeceuroGuard 1000 Small Window Security Grille will transform the way you protect vulnerable small openings in your property.
Application
The SeceuroGuard 1000 is suitable for physical security of small window openings up to 1500mm wide and 1600mm high, with this configuration requiring installation between the window aperture. This application-specific solution is ideal for both domestic and commercial premises where smaller vulnerable openings need protection.
For Domestic Premises
Elegant good looks with a heart of steel - the SeceuroGuard 1000 Retractable Security Gate System combines a classic appearance with strength, making it an ideal security choice for small windows throughout the home. The high quality components used in manufacturing make this one of the best security grilles for small window applications in the UK market. It is strong and yet subtle in appearance with elegant profile sections.
Designed to keep intruders out while letting maximum light in, they are perfect for:
- Bathroom windows and en-suite windows
- Utility room and cloakroom windows
- Ground floor side windows and alleyway windows
- Small kitchen windows and pantry windows
- Children's bedroom windows (for security without blocking light)
- Basement and cellar windows
- Small vulnerable openings that are often targeted by intruders
Gates can be left locked with windows open to provide ventilation without a security issue. Perfect in the summer months.
When not in use these retractable gates are surprisingly unobtrusive. Fitted between the window aperture, they can disappear neatly behind curtains or blinds, and a pelmet can be used to conceal the top track.

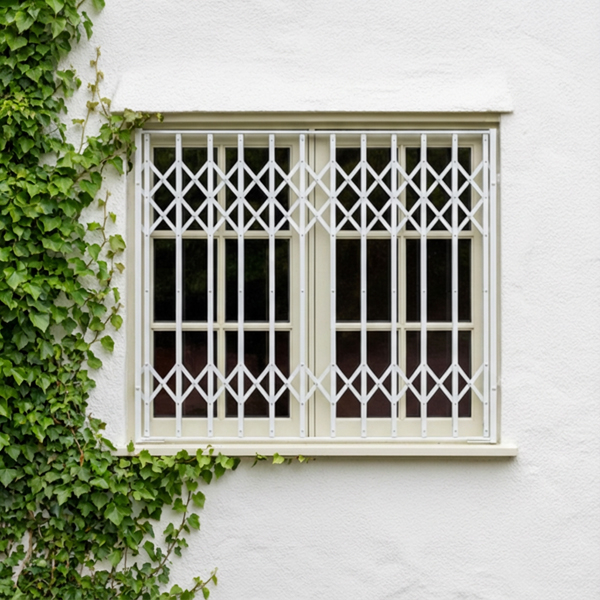

The collapsible security gates are configured for between-aperture installation in window openings up to 1500mm wide and 1600mm high, making them ideal for standard small window sizes found in UK homes.
Essentially maintenance free, each SeceuroGuard 1000 is available in a range of powder coated colour options to complement your décor, and can also be supplied with optional decorative 'S' Profile lattices instead of the standard X lattice design.
For Commercial Premises
Allowing maximum natural light into commercial premises, retractable gates fold to the sides of the window when not required and can be concealed neatly behind vertical blinds to create a secure but pleasant working environment.
Office premises, staff facilities and equipment are safely protected by an exceptionally strong security barrier, manufactured from pre-galvanised rolled steel with multi point locking from a single key.
Offering security features which are particularly important on vulnerable ground floor windows and small openings, the SeceuroGuard 1000 ensures excellent barrier security. Whilst the top hung ultra-smooth carrier system and nylon coated steel bearings also ensure it is quick and easy to open and close. This configuration (up to 1500mm wide x 1600mm high) makes it perfect for:
- Reception area windows and lobby windows
- Staff room and rest room windows
- Storage room and archive room windows
- Toilet and washroom windows
- Small ground floor office windows
- Back office and administrative area windows
- Vulnerable side windows and rear windows
The between-aperture installation method provides a neat, professional finish that fits within the window recess, maintaining the building's aesthetic whilst providing robust security.
SeceuroGuard 1000 is essentially maintenance free and available in a broad range of optional powder coated colours to complement corporate styling. This is a perfect security product for small window applications and offers a truly high level of security without being cumbersome, whilst maintaining visibility and natural light penetration.
Installation Parameters:
- Maximum width: 1500mm
- Maximum height: 1600mm
- Installation type: Between aperture only
- Suitable for: Window recesses with adequate depth for between-reveal fitting
Specification
>• Lattice Design: High-grade pre-galvanised steel in classic 'X' lattice (standard) or modern 'S' lattice (optional, same price)
SeceuroGuard 1000 Retractable Security Grille - Technical Specification
Product Overview
The SeceuroGuard 1000 is a made-to-measure retractable security grille designed for internal medium to high security applications in domestic, commercial, and retail environments. Manufactured from pre-galvanised steel with a smooth, durable powder-coated finish.
Size Capabilities
• Maximum Width: 6000mm (single sash up to 3000mm; unlimited width possible with multiple sashes)
• Maximum Height: 3500mm
• Minimum Width: No minimum restriction
• Minimum Height: 500mm
Construction & Materials
• Lattice Weight: 19kg/m² nominal
• Assembly System: Steel riveted lattice assembly for exceptional strength and durability
• Bearings: Top hung on nylon-coated steel bearings for smooth, quiet operation
• Frame: All galvanised steel construction
• Finish: Powder-coated in a choice of 27 standard colours (custom RAL colours available on request)
Locking & Security
• Locking System: Multi-point locking (2-point or 4-point) operated from a single key
• Lock Position: Supplied with overlapped locking profiles for enhanced security
• Keying Options: Can be keyed alike across multiple grilles
Installation Options
• Mounting: Face-fixed or reveal-fixed to suit opening requirements
• Configuration: Single sash or bi-parting double sash arrangements
• Track Options: Standard fixed bottom track or optional fold-up/removable bottom track for clear walkthrough
• Hinge Aside: Optional hinge-aside configuration for maximum accessibility
Operation & Features
• Operation: Manual slide operation with smooth-running carrier system
• Retraction: Fully retractable—stacks compactly to sides when open
• Through-Vision: Excellent visibility and airflow even when locked
• Handling: Single sashes up to 2000mm wide manufactured in one piece; larger sections assembled on-site for safe handling
• Track Arrangement: Gates wider than 4000mm supplied with top track in two sections (centre split)

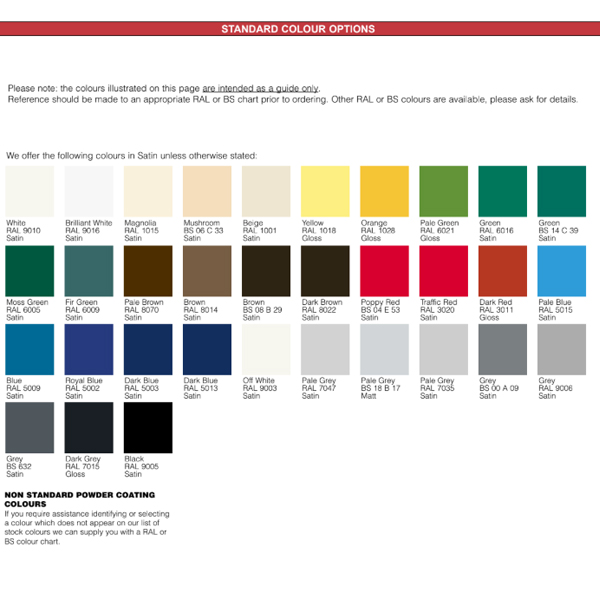

Standard Colours
Brilliant White (RAL 9016), Black (RAL 9005), Anthracite Grey (RAL 7016), Brown (RAL 8014), and 23 additional standard powder-coated colours. Non-standard colours available—please enquire.
Additional Options
• Fixed sash panels (where access not required)
• Locking posts at both ends for maximum operational flexibility
• Custom colour matching service available
• Split sash arrangements for extra-wide openings
Quality & Compliance
• Manufacturing: UK-manufactured by SWS UK to ISO 9001:2015 standards
• Corrosion Protection: Pre-galvanised steel construction with powder-coated finish
• Warranty: 2-year parts warranty (see Warranty tab for full details)
Important Notes
• Sashes manufactured in single pieces up to 2000mm wide ensure structural integrity
• Larger gates supplied in sections with bolts and fixing plates for on-site assembly
• Top tracks for gates over 4000mm wide supplied in two pieces with centre split
• Where split sashes meet, pickets are joined using supplied bolts and fixing plates
Related Products
For enhanced security requiring insurance approval, consider upgrading to the SeceuroGuard 1001, independently tested and certified to Loss Prevention Standard LPS 1175 Security Rating 1.
Installation
Smaller grilles are simple to handle and install generally and it is only when the sizes and weights exceed a single person handling that you require 2 or more people to assist and manouvre the components into place.
For optimal performance and warranty compliance, we strongly recommend professional installation by qualified security grille installers or tradesmen used to installing doors, windows and other products requiring associated skills. SeceuroGuard grilles require precise measurement, secure substrate fixing, and correct assembly—particularly for the SR1 rated SeceuroGuard 1001 model where LPS 1175 certification validity depends on installation meeting LPCB requirements.
Installation Methods
The SeceuroGuard range offers three primary installation configurations to suit different architectural requirements:
- Face-Fixed with Bottom Track - Complete framework mounted to wall surface with floor-mounted bottom track
- Face-Fixed to Aperture - Framework fitted around opening perimeter with additional support profiles
- Reveal-Fixed Within Aperture - Compact installation within window or door recess
Ordering Dimensions - Critical Information
SeceuroGuard grilles are always ordered using Overall Width and Overall Height measurements that include the complete framework and sash assembly.
For Face-Fixed Installations: Add the relevant dimensions for side frames, top track, and bottom track, plus any reinforcement sections required to calculate your ordering sizes.
For Reveal-Fixed Installations: Measure the internal aperture dimensions—the grille framework is manufactured to fit within this space.
Pre-Installation Requirements
Essential Tools & Equipment:
- Spirit level and measuring tape
- Hammer drill with appropriate masonry bits (for brick/block) or metal drill bits (for steel frames)
- Socket set and spanners
- Screwdriver set (Phillips and flathead)
- Safety glasses and dust mask
- Stepladder or access platform
Substrate Assessment:
Secure fixing requires:
- Brick/Block Walls: Minimum 100mm embedment depth with resin anchors or expansion bolts
- Steel Frames: Through-bolting with appropriate grade fixings
- Timber Frames: Coach screws to structural timber (not suitable for all applications)
- Weak Substrates: May require reinforcement—consult a structural engineer
Installation Process Overview
1. Site Preparation
- Verify opening dimensions match order specifications
- Check substrate condition and load-bearing capacity
- Ensure adequate clearance for sash operation and bunch width (approximately 15% of overall width)
- Clear the work area and protect flooring/surfaces
2. Framework Assembly
- Unpack all components and verify against delivery note
- Pre-assemble track sections if supplied in multiple pieces (widths over 4000mm)
- Check all fixings, brackets, and components are present
3. Positioning & Leveling
- Position top track using temporary supports
- Use spirit level to ensure perfect horizontal alignment—critical for smooth operation
- Mark all fixing positions through pre-drilled holes in framework
- For face-fixed installations, ensure fixing frame is plumb and square
4.Secure Fixing
- Drill pilot holes to correct depth for substrate type
- Install fixings progressively, checking alignment after each fixing
- Torque fixings to manufacturer's specifications - avoid over-tightening
- Ensure minimum fixing centres are maintained (typically 400-600mm)
5. Sash Installation
- Attach sash carrier wheels to top track
- Guide lattice sash into track system
- For larger installations, sections may require on-site joining with provided fixings
6. Locking Mechanism
- Install lock posts and slam posts according to configuration
- Adjust multi-point locking to ensure smooth engagement
- Test lock operation through full cycle
7. Final Adjustments & Testing
- Check sash slides smoothly across full width
- Adjust carrier wheels if binding or resistance occurs
- Verify locking engagement is secure
- Test bottom track (if folding option specified)
Installation Considerations
Installation Considerations
For SeceuroGuard 1001 SR1 Rated Installations:
- Must comply with LPS 1175 installation requirements
- All fixings must meet specified security standards
- Installation certificate may be required for insurance purposes
- Substrate must provide adequate resistance—certification is void if installation is compromised
Hinge-Aside & Folding Track Options:
Installation Considerations
Special installation procedures apply for optional configurations—refer to specific instructions provided with these options.
Common Installation Challenges:
- Out-of-Square Openings: May require packing or shimming—check diagonals before fixing
- Uneven Floors: Particularly affects bottom track alignment—may require floor preparation
- Restricted Access: Consider installation sequence for narrow doorways or difficult access
- Overlapping Windows/Doors: Plan sash stacking location to avoid operational conflicts
Post-Installation
-
Remove all protective coverings and packaging
- Clean lattice and tracks with mild detergent
Technical Support & Downloads
For detailed step-by-step installation instructions with comprehensive diagrams, download our Samson SeceuroGuard Fitting Guide PDF
For measurement guidance, see Measuring for Security Grilles or download SeceuroGuard 1000 and 1001 Ordering Dimensions PDF
Need Installation Support?
Our technical team can provide guidance for complex installations:
- Call: 01933 448 850
Warranty
SeceuroGuard retractable security grilles are backed by a comprehensive parts-only warranty from Samson Doors and SWS UK covering general product components including fixing frame, sashes, tracks, lattice, powder-coated finish, and locking mechanisms for a period of 2 years from the date of purchase.
This warranty applies only when the product is installed, maintained, and operated according to SWS UK guidelines.
What the Warranty Covers
SWS UK will repair or replace any part found to have a manufacturing defect during the warranty period. This includes:
- Defects in materials or workmanship affecting the operation of the retractable security grille
- Failure of the fixing frame, sashes, tracks, or lattice due to manufacturing fault
- Defective powder-coated finish (within the first 2 years from purchase date)
- Faulty locking mechanisms or key operation
Please note: Labour costs, call-out fees, transport, and other associated expenses are not included in this warranty.
The Warranty Does Not Cover
This warranty does not cover damage or faults caused by:
- Incorrect installation or failure to follow SWS UK fitting instructions
- Poor or improper maintenance or lack of regular servicing
- Incorrect use or unauthorized modifications to the grille
- Normal wear and tear, accidental damage, or malicious damage
- Labour costs, call-out fees, transport, or other consequential costs
- Cosmetic marks or blemishes not visible from 3 metres in natural light
- Exposure to corrosive environments including saltwater or salty air for products installed within 500 metres of the coast
- Rust or corrosion caused by failure to maintain the product according to SWS UK guidelines
- Damage caused by environmental factors including extreme weather, flooding, fire, or impact
- Misuse or negligence by the end user or third parties
- Products not purchased through authorized SWS UK distributors
Warranty Conditions
To maintain the validity of this warranty:
- The SeceuroGuard grille must be installed by a competent installer/person in accordance with SWS UK fitting instructions
- The product must be used for its intended purpose only (domestic or commercial security applications as specified)
- Regular maintenance must be carried out as per the operating and maintenance instructions provided
- Any warranty claim must be accompanied by proof of purchase showing the date of purchase
- Products must be purchased through authorized SWS UK distributors
Making a Warranty Claim
If you believe your SeceuroGuard grille has a manufacturing defect covered by this warranty, contact Samson Doors with your product details, proof of purchase, date of installation, and a clear description of the fault. We may request photographs or arrange an inspection to assess the claim. If the claim is valid, we will arrange repair or replacement of the defective part(s) as appropriate.
Please retain your proof of purchase and warranty documentation for future reference.
Exclusions and Limitations
-
This warranty is non-transferable and applies only to the original purchaser
- SWS UK reserves the right to repair or replace defective parts at its discretion
- Repaired or replaced parts carry a warranty for the remainder of the original warranty period or 12 months, whichever is longer
- This warranty does not affect your statutory rights under UK consumer protection legislation
- SWS UK will not be liable for any consequential loss, damage, or expenses arising from product failure
Try some of our best sellers
