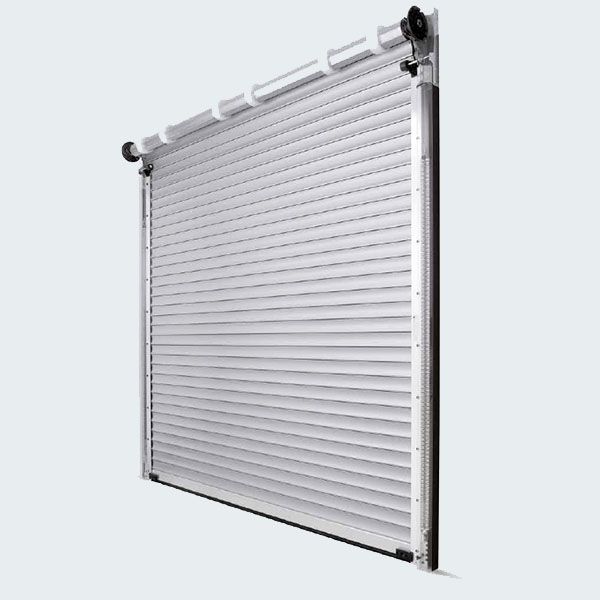

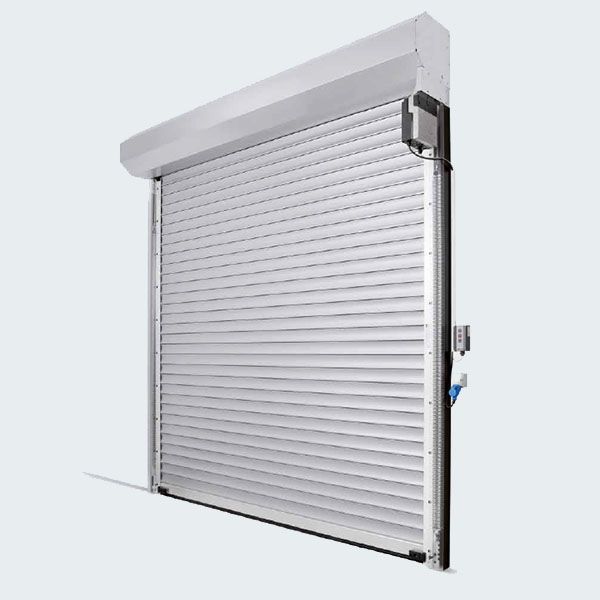

SB HG-L

Insulated Roller Doors

Spring Balanced Roller Shutter Door

Material: Aluminium
Gear Type: Roller Shutter
Enquiry Form
Call Us
Email Us
i
Enquire
Price on ApplicationPlease click enquire or call our sales team
Enquire
NEED HELP?
Let us help you complete your order
Enquiry form Call us Email us
  • Specification
Specification



  Rolling shutter SB Rolling grille SB    Rolling shutter / rolling grille TGT
Decotherm HR 120 HG-L HG-75 Decotherm HG-L
S A aero     S
Wind load EN 12424 Class 2 up to door width in mm 5000 5000 4000 5000
Higher wind loads on request
Wind lock
Water tightness EN 12425   0 0 0 0 0 0 0
Thermal insulation

Appendix B EN 12428
Individual door section (U = W/(m2•K))

3.9 3.9

Shutter 4 x 4 m,
fitted (U = W/(m2•K))

4.1 4.2**
Accoustic rating Shutter 3.5 × 2 m, fitted (Rw = dB) 18 18
Door sizes Max. width mm 5000 5000 4000 6000 6000 5000 6000
Max. height mm 4500 4500 4000 4500 3500 2400 2400
Space requirements See the technical manual
Curtain material Single-skinned steel
Double-skinned steel
Single-skinned aluminium
Double-skinned aluminium
Curtain surfaces Galvanised steel
Galvanised steel coated in RAL 9002  ◌
Galvanised steel coated in RAL 9006  ◌
Galvanised steel coated in RAL to choose  ◌
Bright-rolled aluminium
Stucco-textured aluminium
Aluminium coated in RAL 9002
Aluminium coated in RAL 9006
Aluminium coated in RAL to choose ◌*
Anodised aluminium E6 / EV 1
Mill-finished aluminium
Weight of curtain approx. kg/m2 10.3 6.0 5.5 6.5 6.7 10.3 6.5
Side door matching the door
Glazing Standard arrangement
Logistics arrangement
Seals All-round on 4 sides
Break-in resistance WK 2 DIN V ENV 1627:1999
Pull-out protection
Internal locking
Internal / external locking
Security equipment Finger trap protection
Side trap guard
Safety catch
Fastening options Concrete
Steel
Brickwork
Timber

 ● = Standard   ◌ = Optional

* RAL 9016, RAL 7035, RAL 9006, RAL 5011, RAL 8028, RAL 7016, RAL 9005
** Shutter 4 × 2.4 m, fitted
